Nuova Simonelli





Important!

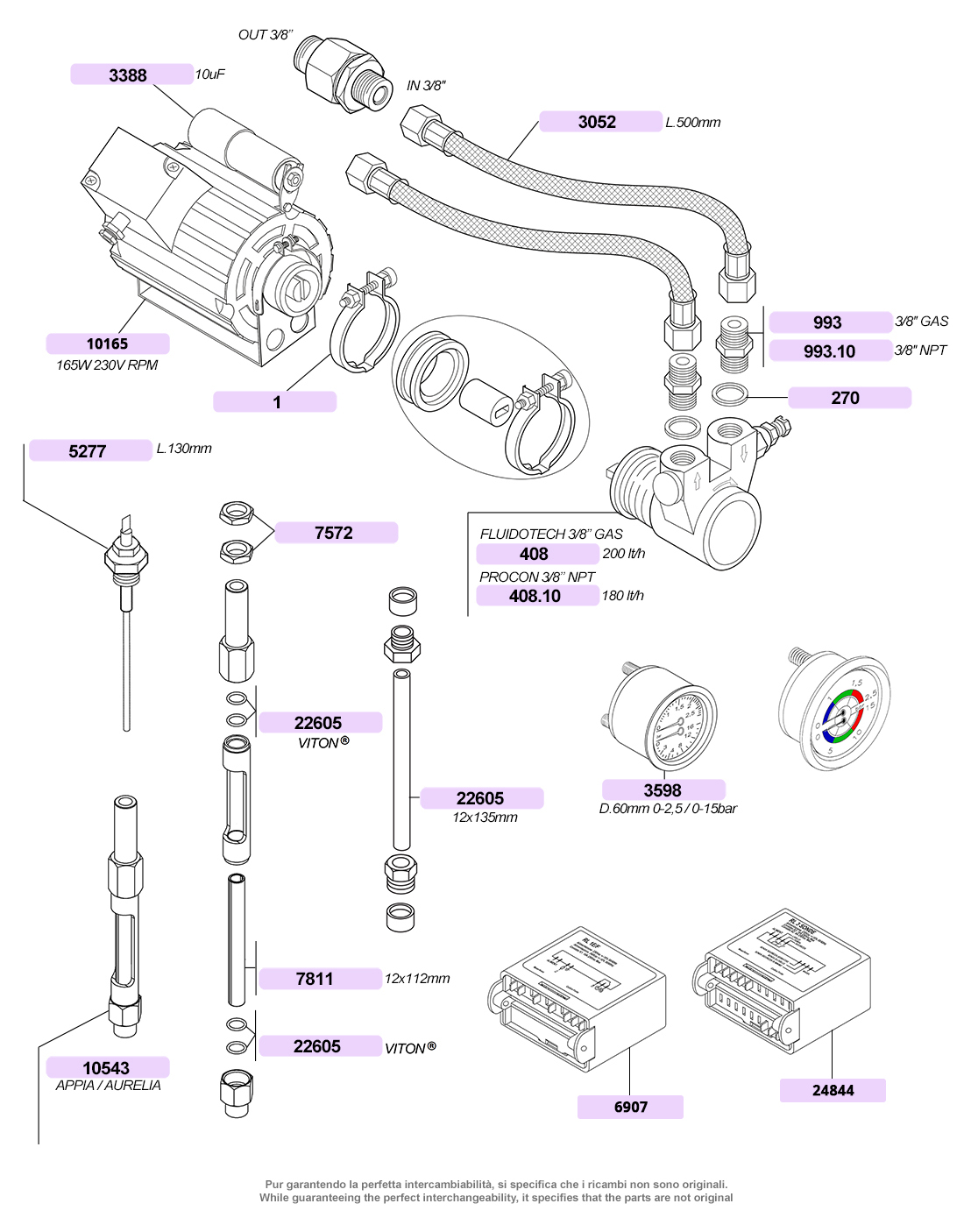

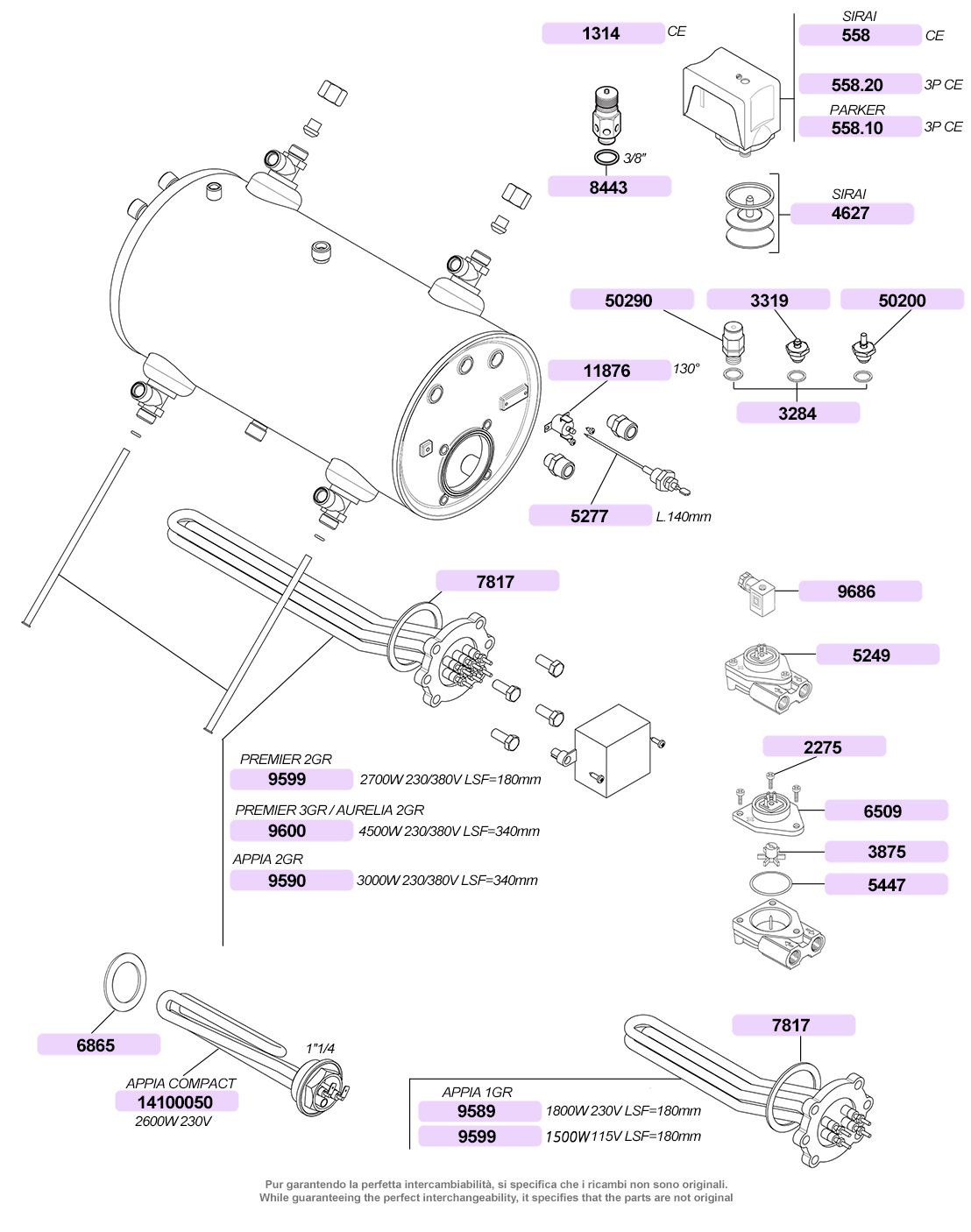

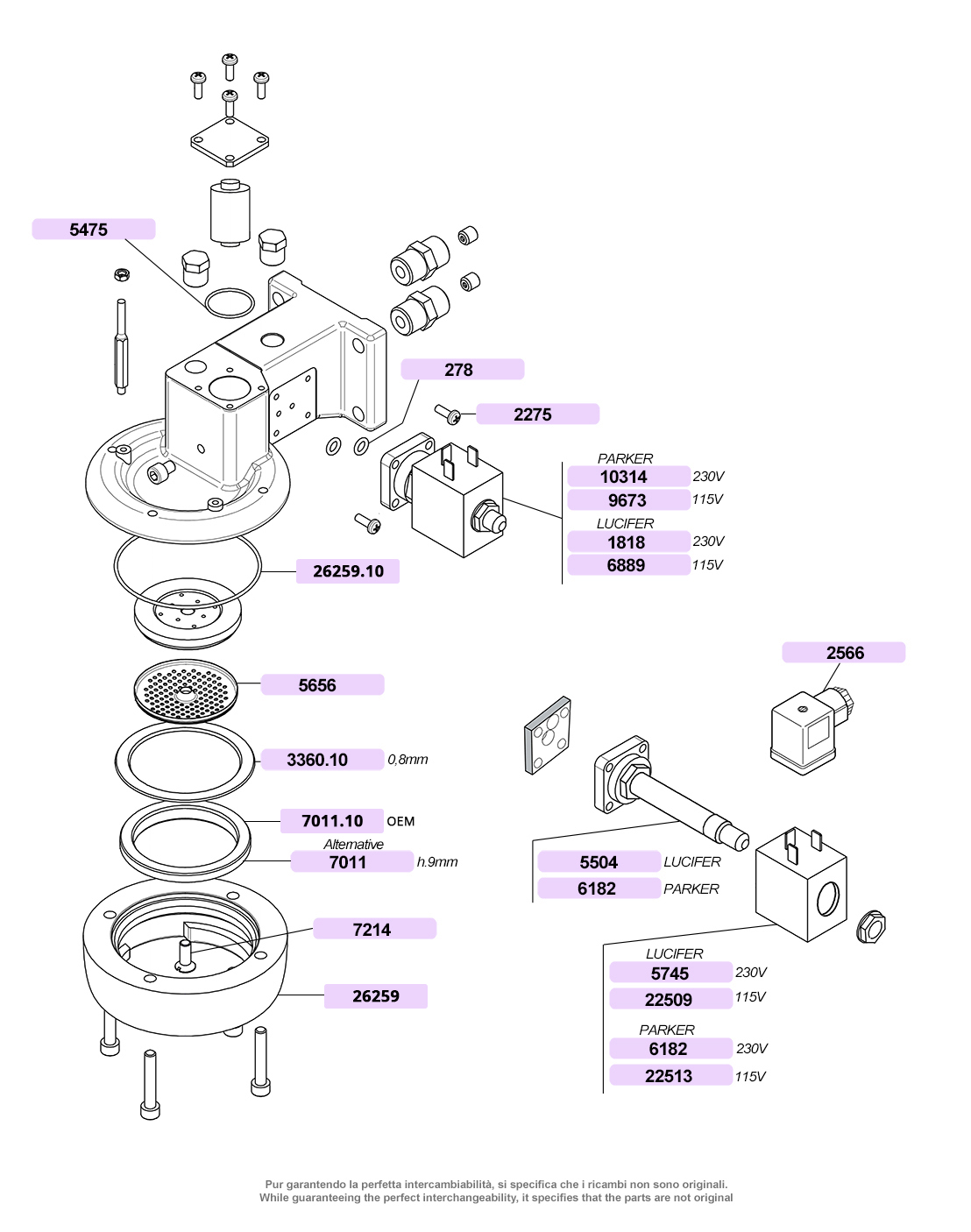

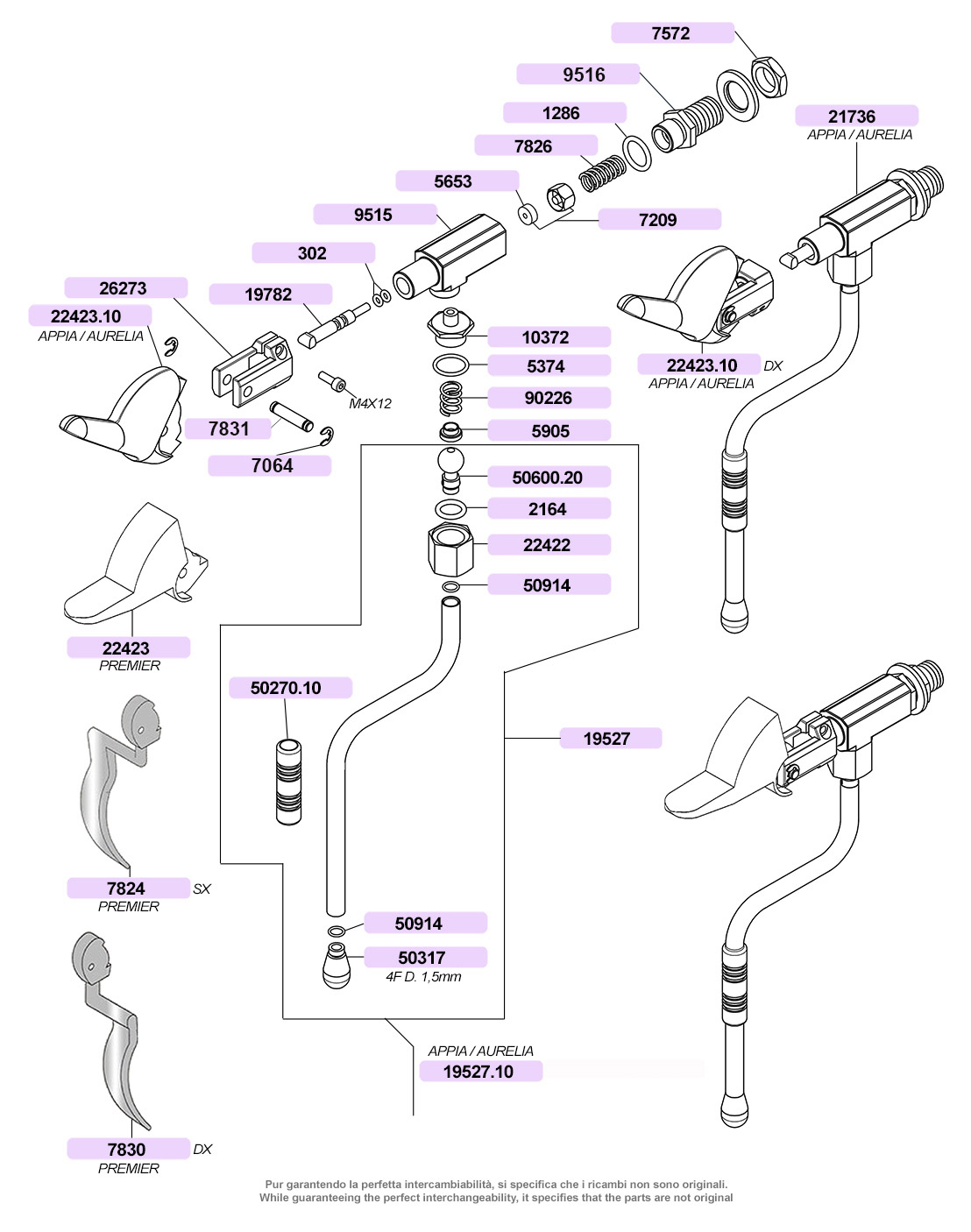

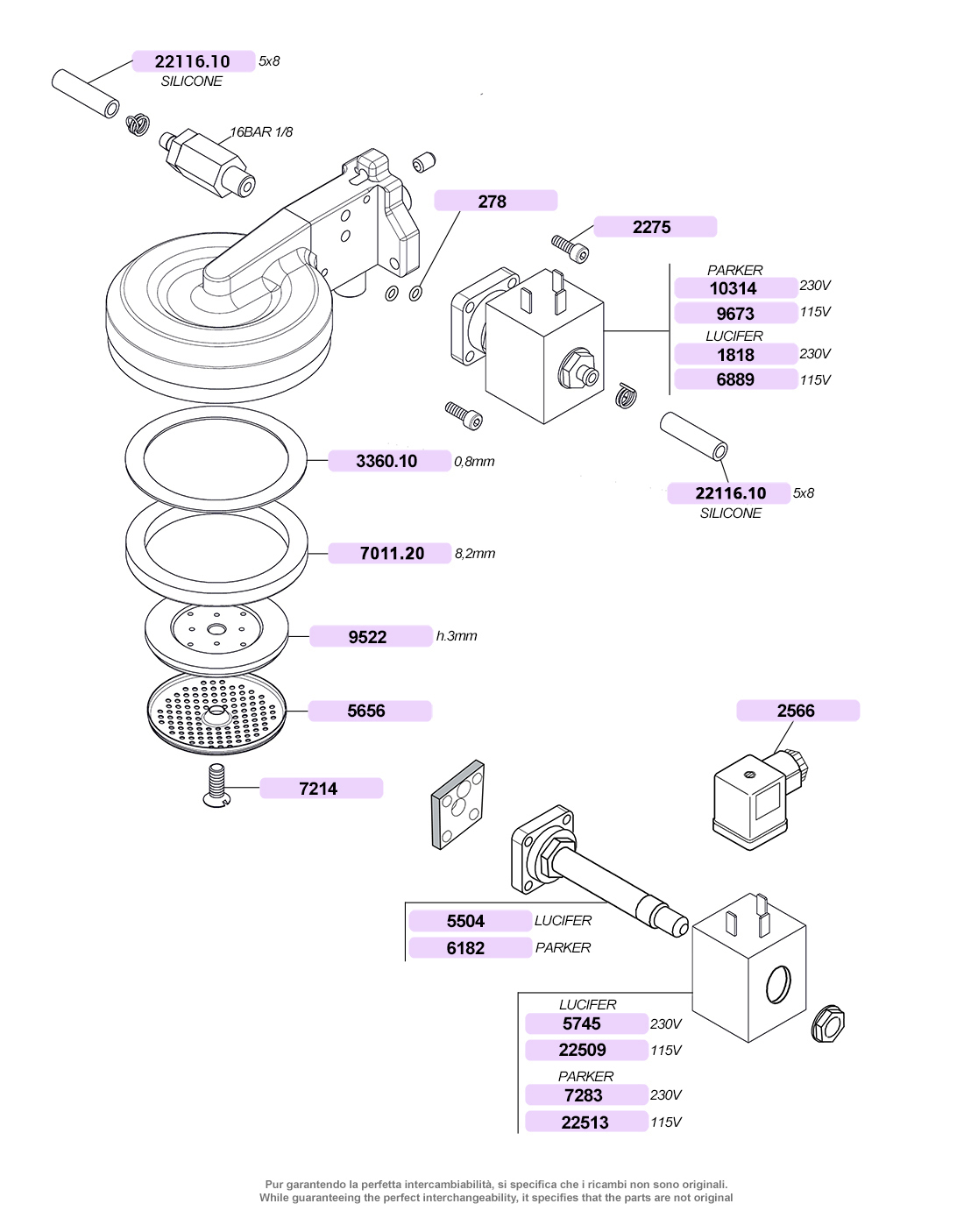

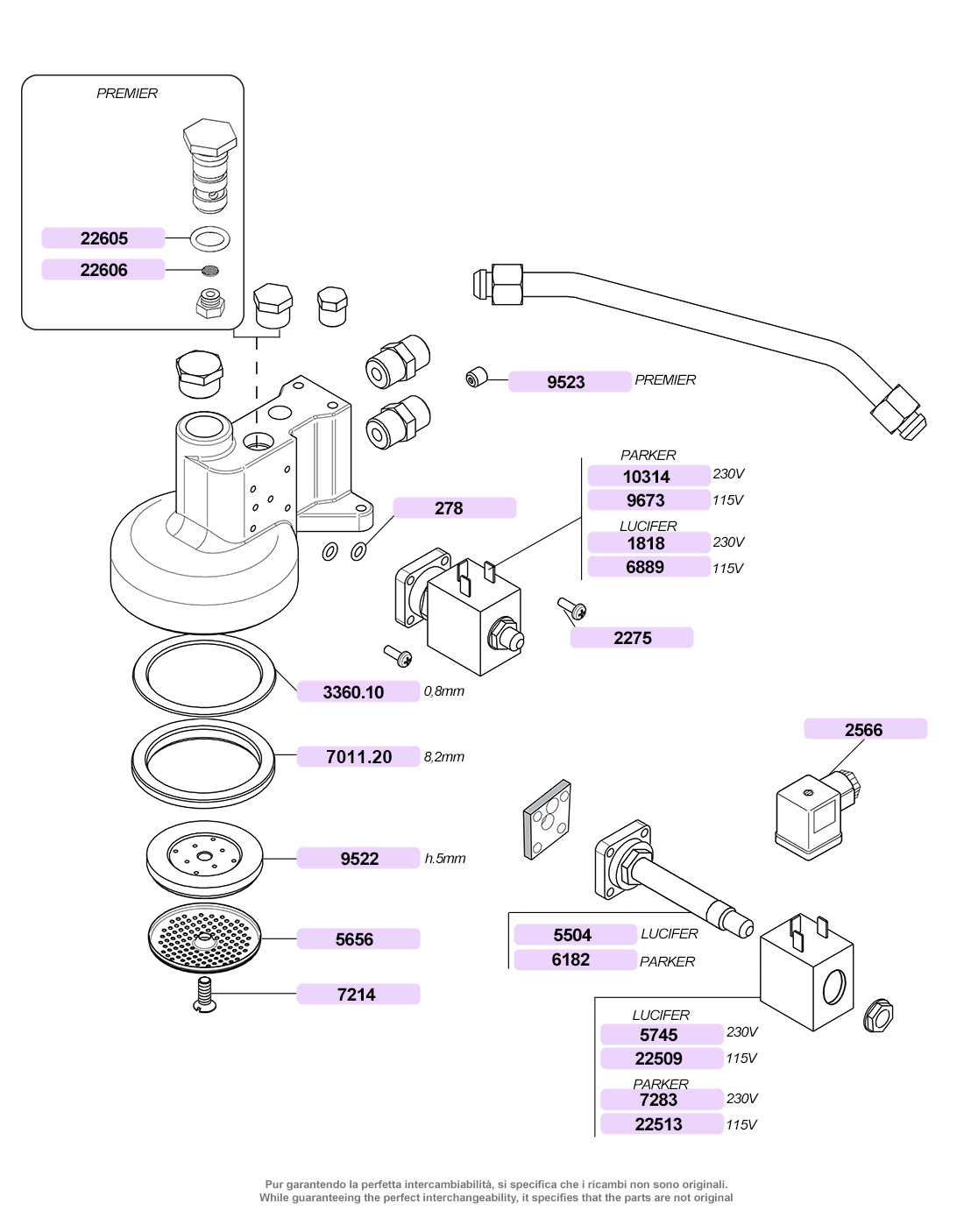

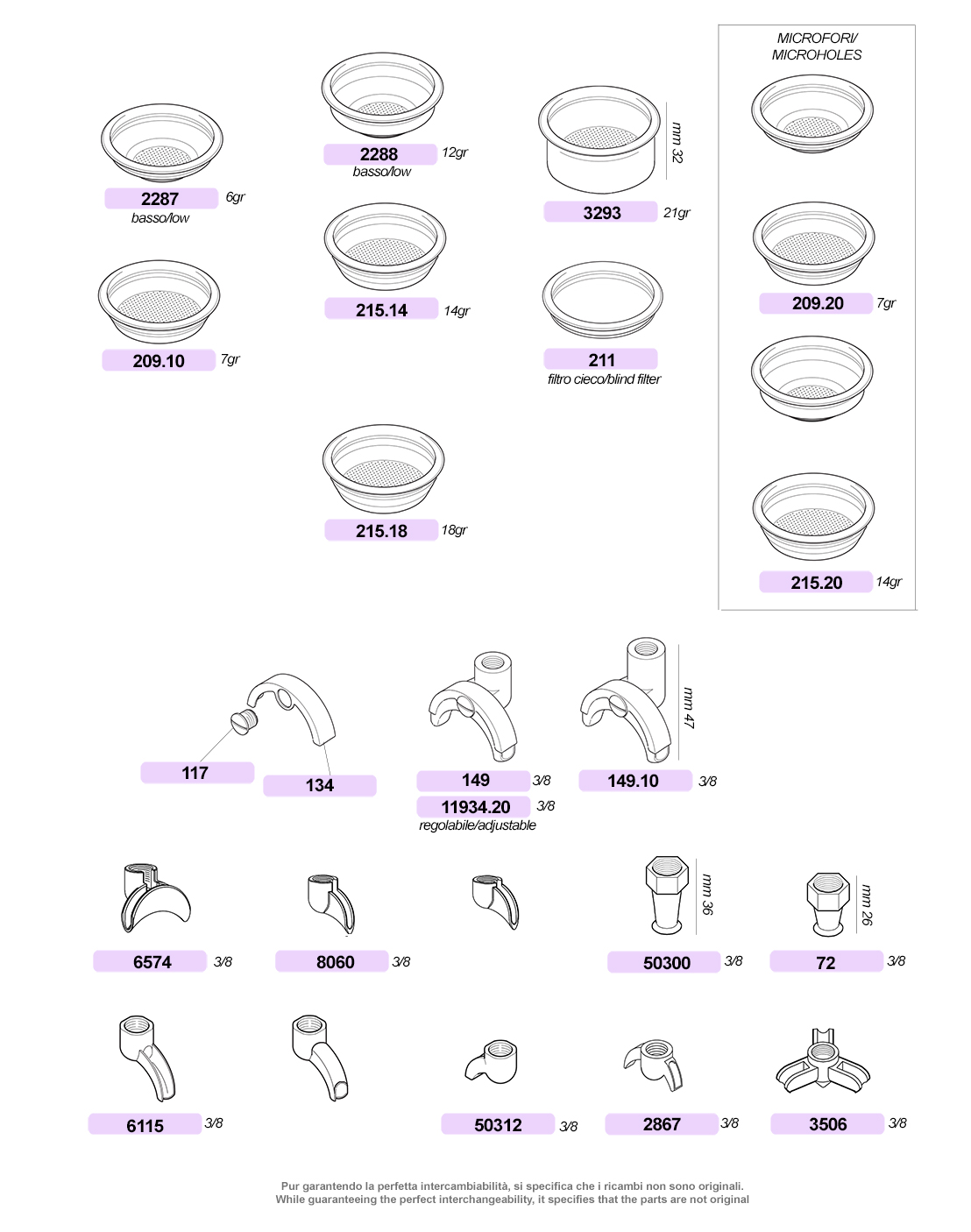

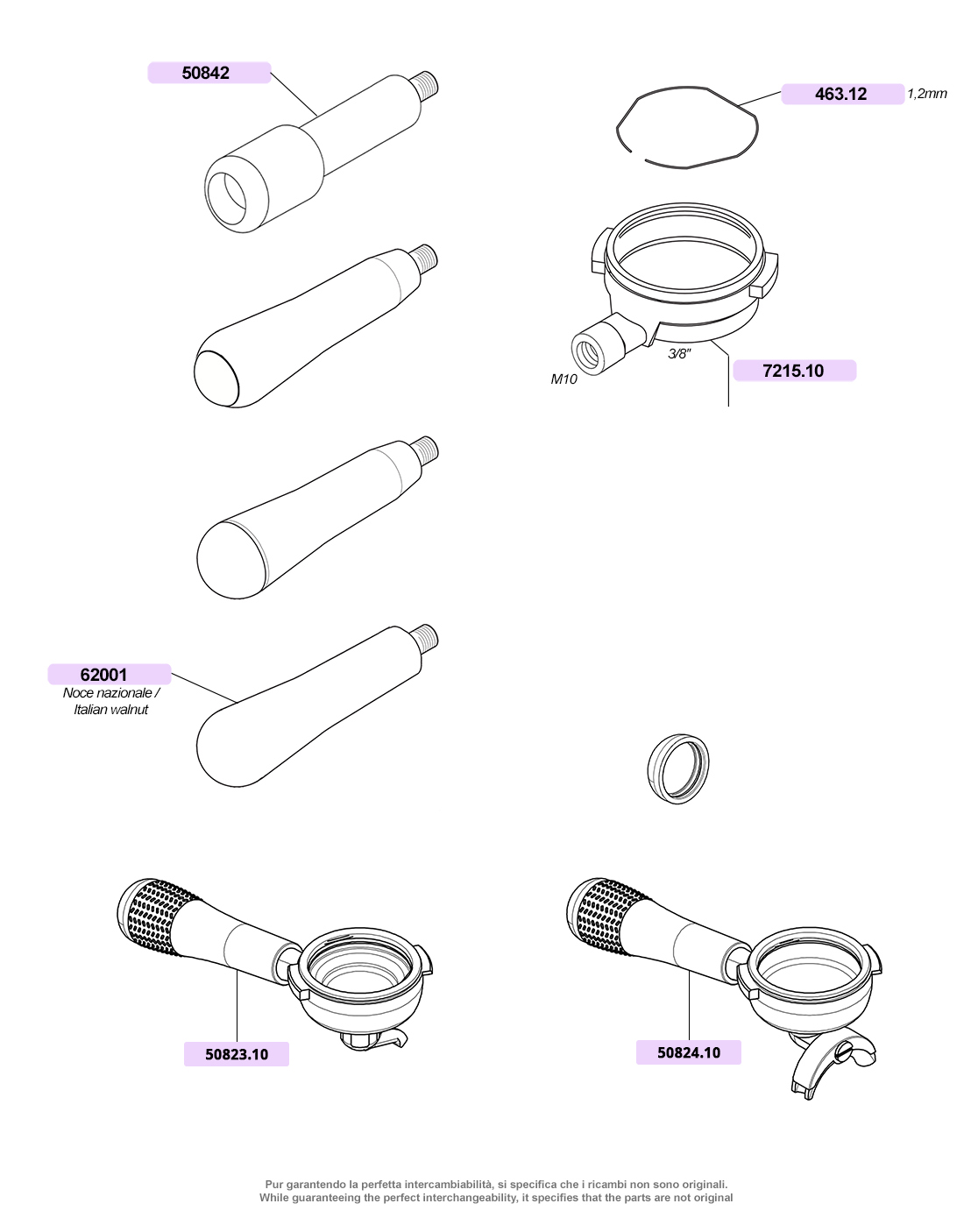

The diagrams in this section will not teach you how to repair espresso machines!

If you do not have a basic understanding of espresso machine terminology and operation, nothing here will help you!


Whiles our inventory is extensive, not all of the parts listed in the reference column to the right of the diagram are in production and some may not be available at all.

The diagrams are a tool to assist service professionals and should serve to supplement your understanding of the parts needed to repair machines.
